Built for Locating Large, Deeply Buried Target



 New Improved!

• Best Price Guaranteed - Price Match
• Free US Shipping
• 2 Year Manufacturer's Limited Warranty
• Made in the USA

Purpose

 Deep-seeking and cache locating for large buried objects, ore veins, pipes, and utilities.

Ideal For

• Prospectors
• Geologists
• Treasure Hunters
• Utility Companies

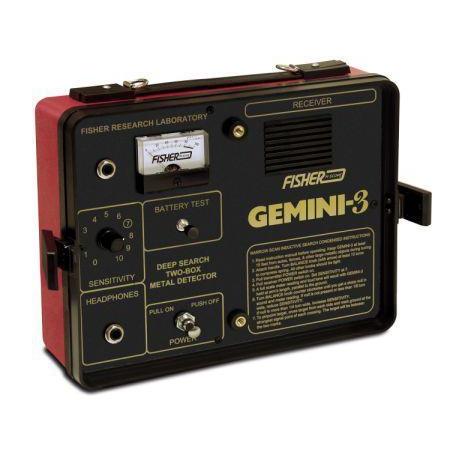

The 2-Box Treasure Hunters know that Fisher's Gemini-3 has a reputation for being the best there is. Designed to locate deep objects; depending on ground mineralization and target size, objects may be detected 10 to 15 ft. The Gemini-3 goes deeper, traces farther, and is easier to use than any other cache finder in its class.



Features

• Operating Frequency: 82kHz
• V.C.O. audio response for target pinpointing
• Operates in Inductive Search Mode
• Offers a Conductive Trace Mode
• Equipped with Wide and Narrow Scan Inductive Trace modes
• Features 60-Cycle Noise Reduction circuitry
• Utilizes Power On-Off Push-Pull switches
• Requires 16 AA batteries (8 in Transmitter and 8 in Receiver)
• Includes Battery Test Meters
• Weighs 7.5 lbs. (3.4 kg)
• Dimensions: 20"L x 12"W x 7"H
• 2-Year Warranty



Fisher Gemini 3 User Manual

Specifications:

	Lenght on handle: 49-1/4" Transmitter-Receiver Box Assembly 9-¼” x 12” x 6”
Weight	Complete: 7 lbs. Transmitter: 2.4 lbs. Receiver: 2.9 lbs. Handle 1.7 lbs.
Operating Search Modes	Search 1. Narrow Scan, Inductive 2. Wide Scan, Inductive Trace Trace 1. Inductive 2. Conductive
Frequency	RF Search and Trace: 81.92 kHz Crystal Controlled Audio Target Response: (V.C.O.)
Audio Functions	Target Response Meter: 2-¼” x 1-¾”, Analog Speaker: 2-¼” 100 ohms, Moisture-Proof Cone Headphones: ¼” Jack, 8-16 ohms, Stereo/Mono
Batteries	Receiver: (8) AA 1.5v Transmitter: (8) AA 1.5v
Battery Life	Carbon Zinc: 30 hours Alkaline: 50 hours
Warranty	5-Year Warranty Warranty may vary outside of the United States; warranty applies to the Original Purchaser Only.
