With Windows Notebook and Visualizer 3D Software

The Rover C4 ground scanner is a versatile and user-friendly device designed for detecting deep treasures and voids. It aids treasure hunters and archaeologists in locating buried artifacts such as coins, relics, vessels, and jewelry, as well as natural gold deposits, tunnels, caves, chambers, and graves. Data collected by the device can be examined and interpreted using the Visualizer 3D Studio Software for detailed analysis.

OKM Rover C4 Features:

Bestseller: 3D ground scanner and metal detector
Detection Depth: Customers found objects to 25 m (82 ft) deep
Use Cases: Treasure hunting, natural gold prospection
Operating Modes: 3D Ground Scan, Pin-pointer, Magnetometer, Mineral Scan
Detectable Objects: Natural gold minerals, treasure chests, jewelry, militaria
2-Year Manufacturer Warranty
Made in Germany

OKM Rover C4 Use Cases:

Archeology
Cavity Detection
Explosive Ordnance Disposal Services
Militaria Detection
Natural Gold Prospection
Treasure Hunting
OKM Search Services

OKM Rover C4 Package Includes:

1x Control Unit
1x Standard Probe with LED Orbit
1x Super Sensor with LED Orbit
1x Pre-Configured Windows Notebook
1x Software Visualizer 3D Studio Standard Edition
1x Bluetooth Headphones
1x Charger and Travel Adapter
1x Protector Tube
1x Protector Tube
1x Water Proof and Shock-resistant Protector Case
1x Quick Start Guide

OKM Rover C4 Special Features

Operational touchscreen with alternative hardware buttons
Graphical user interface in many different languages
Improved multilevel LED lighting for detector usage in darkness
Exchangeable probes: Standard Probe and Super Sensor
Immediate basic target discrimination thanks to LED Orbit
Supported operating modes: 3D Ground Scan, Pin-pointer, Mineral Scan, Magnetometer
Integrated battery
Simplified wireless data transfer
4 separate memory areas to store measuring data
Including detection software Visualizer 3D Studio Standard Edition

Simple Operation Via Touchscreen

The Rover C4 is controlled via a color touchscreen with multi-lingual user interface. This allows a fast and easy operation and configuration of the metal detector. The detector can also be operated by using the alternative buttons.

Treasure hunting in the dark, thanks to LED Lighting

The embedded LEDs in the bottom side of the Control Unit are gradually adjustable based on your environment. This can be particularly useful when scanning in narrow and dark tunnels or at night.

Interchangeable Probes

After connecting the desired probe to the Rover C4 Control Unit, the detector is ready to scan.

The Standard Probe can be used for the operating modes 3D Ground Scan and Magnetometer. It is attached directly to the unit and thus very easy to carry.

The Super Sensor is used for all operating modes including Mineral Scan and Pinpointer. Moreover, it provides 3D ground scan images in higher resolution. It is connected via cable and carried separately.

Immediate Feedback via LED Orbit

The detector is also equipped with an innovative LED orbit, that indicates underground targets visually. While scanning the ground this LED sphere emits colored light to visualize detected metals and cavities immediately.

Treasure Detector Operating Modes

One of the most versatile operating modes in our 3D metal detectors is 3D Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.

However, in order to perform extensive ground measurements and achieve the maximum detection performance, we recommend using the operating modes Magnetometer, 3D Ground Scan and Pinpointer. The Mineral Scan mode is a Rover C4 add-on for gold prospectors.

Magnetometer

Use Magnetometer to clear the scan field of small metal items like nails, cans, screws and wires near the surface.

3D Ground Scan

3D Ground Scan provides a graphical measurement of any area for further analysis in the detection software Visualizer 3D Studio.

Pin-pointer

With Pinpointer detectorists locate buried coins, rings, jewelry and similar treasure objects and artifacts more precisely.

Mineral Scan

Mineral Scan is used to locate natural gold deposits.

The fewer metal items near the surface, the better your 3D Ground Scan results. After clearing your scan field with Magnetometer, you can also find larger metal targets which are located deeper underground. Analyze your 3D Ground Scan images in Visualizer 3D Studio and locate the detected objects more precisely with the Pinpointer mode.

Ground Scanning with OKM Rover C4 Metal Detector

One of the most versatile operating modes in our 3D metal detectors is Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.

Detectable items that can be found with our 3d ground scanner OKM Rover C4 are:

Lost treasures and hidden precious metals
treasure chests, gold coins, jewelry, silverware, statues, general valuables, buttons, medals, etc.
Underground voids and cavities
tunnels, graves, chambers, cellars, sepulchers, dugouts, shelters, bunkers, etc.
Natural gold minerals
gold ore, gold deposits, gold veins, etc.

3D Data Analysis With Visualizer 3D Software

All data that has been recorded with the OKM Rover C4 metal detector during a ground scan or mineral scan can be transferred to the Visualizer 3D Software to process a detailed three-dimensional analysis.

During Analysis

Identify potential objects and hidden treasures
You will see the targets represented by different colors. The color information will tell you if it is a ferrous metal (iron, steel, …), precious metal (gold, silver, bronze, copper, …), or a void structure (cave, tunnel, grave, chamber, …).

Determine position and depth
The software shows the position of the detected anomalies and – according to the chosen soil – how deep the target is buried in the ground.

Calculate object dimensions
Next to the depth information Visualizer 3D can also calculate the dimensions of hidden targets and buried items.

Computer Minimum Requirements

Interface (data transmission): USB 2.0
Free disk space: 250 MB
Working memory (RAM): 2 GB
Display: 1920 x 1080
Processor: 1.2 GHz
Graphics card: 1 GB RAM, OpenGL 3.3
Operating system: Windows 10

Data Transmission

Technology: Bluetooth 5.1
Frequency: 2.402 – 2.480 GHz
Maximum Transfer Rate: 1 Mbps
Maximum Transmitting Power: +8 dBm
Maximum Range: approx. 10 m

OKM Rover C4 Control Unit

Dimensions (H x W x D): 390 x 300 x 140 mm
Weight: about 1.5 kg
Input voltage (max.): 19 V DC, 3.16 A, 60 W
Processor / Main CPU: Cortex M3, 32 MHz
Processor / Slave CPU: Cortex M0, 24 MHz
Display: 3.5” Resistive touch, 480 x 320 Pixel
Display CPU: Cortex M3, 32 MHz, 128 KB RAM
Data memory: 4 GB
Sample rate: 1024 values / second
Measurement resolution: 16 bit
Operating temperature: –10°C – 60°C
Storage temperature: –20°C – 70°C
Audio: Internal speaker / Bluetooth
Waterproof: No
Air humidity: 5% – 75%

OKM Rover C4 Standard Probe

Weight: 0.4 kg
Length: 445 mm
Diameter tube / LED Orbit: 35 mm / 65 mm
Technology: SCMI-15-D

OKM Rover C4 Super Sensor

Weight: 0.9 kg
Length: 960 mm
Diameter tube / LED Orbit: 50 mm / 65 mm
Technology: SCMI-15-D

OKM Rover C4 3D Ground Scaning

For more info on OKM Rover C4 - watch OKM Rover C4 videos here!

Check out our Rover C4 blog post here!

Download Rover C4 Manual - Click Here

For more OKM detectors - Click Here

Buy it now with Wire Pay

Request a "Wire Pay Discount" here!

Gold Prospecting

Fisher Gold Bug Pro Metal Detector

Electronic Gold Prospecting Pocket Scale

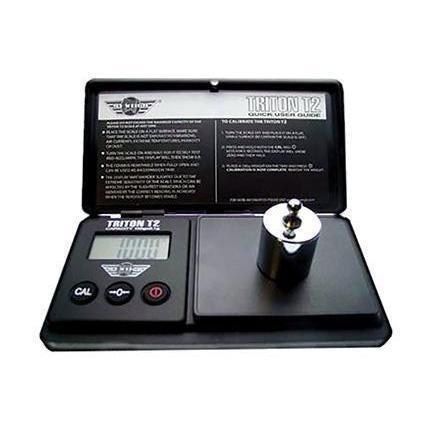

Triton T2 Digital Scale

OKM Rover C4 Gold Detector and 3D Ground Scanner MPN:3931

XP Gold Batea Kit

XP Gold Pan Premium Kit

XP Gold Pan Starter Kit

Magnet Pick Up Tool

Mini Super Magnets

XP ORX Metal Detector 9.5x5" Elliptical HF Coil

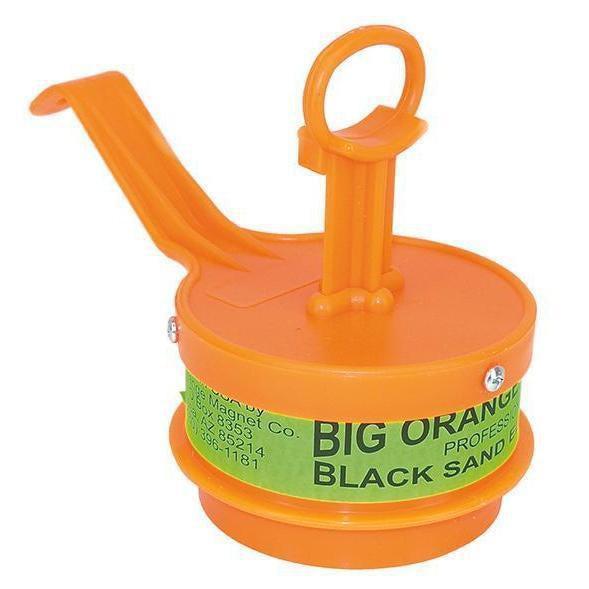

Big Orange Magnet
